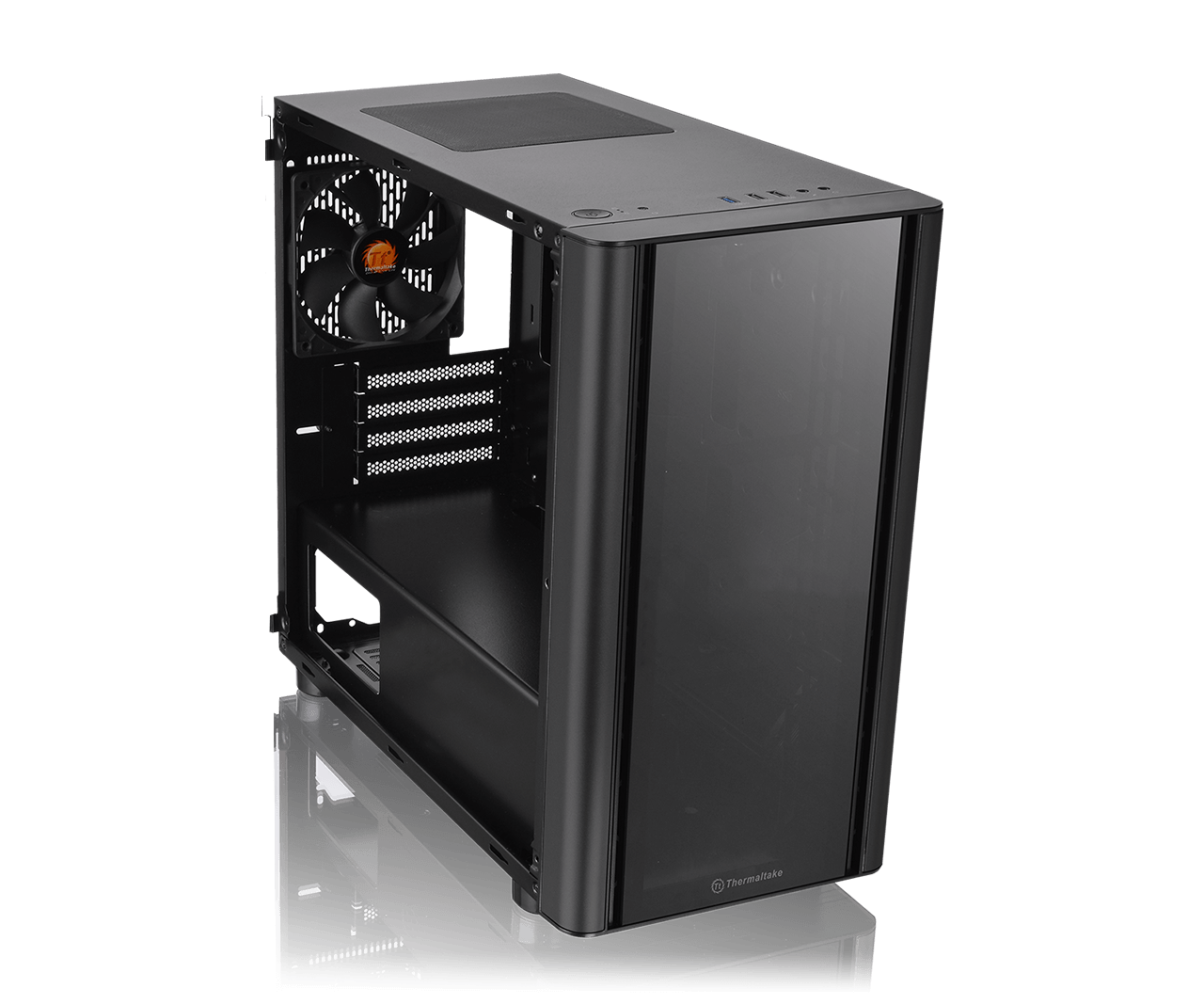

The V150 Tempered Glass Micro Chassis is the newest member of the Thermaltake V Series chassis. It is designed to be a compact size and fits a standard Micro ATX motherboard. The V150 TG is the first micro case of the V Series that is at a budget-friendly price point. It is targeted for users who just started pc building and is looking for a basic enclosure to start their journey.
The V150 TG is also compelling to users who love to showcase interior components and its full RGB glory. Hardware expansion and ventilation of the case are all taken into consideration during the innovation process. Besides two 4mm tempered glass windows and one preinstalled 120mm standard rear fan, the V150 TG can accommodate two 140mm fans at the front and one 140mm fan on the top, and a full-length PSU cover for overall exceptional performance which is ideal for both gamers and enthusiasts.
- The image is for reference only.
The V150 TG comes with a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
- The image is for reference only.
The V150 TG comes with two 4mm tempered glass panels at the front and on the left, thicker and more scratch resistant when compared to standard acrylic. On top of that, the enlarged window design enables you to display and admire all your components in their full RGB glory.

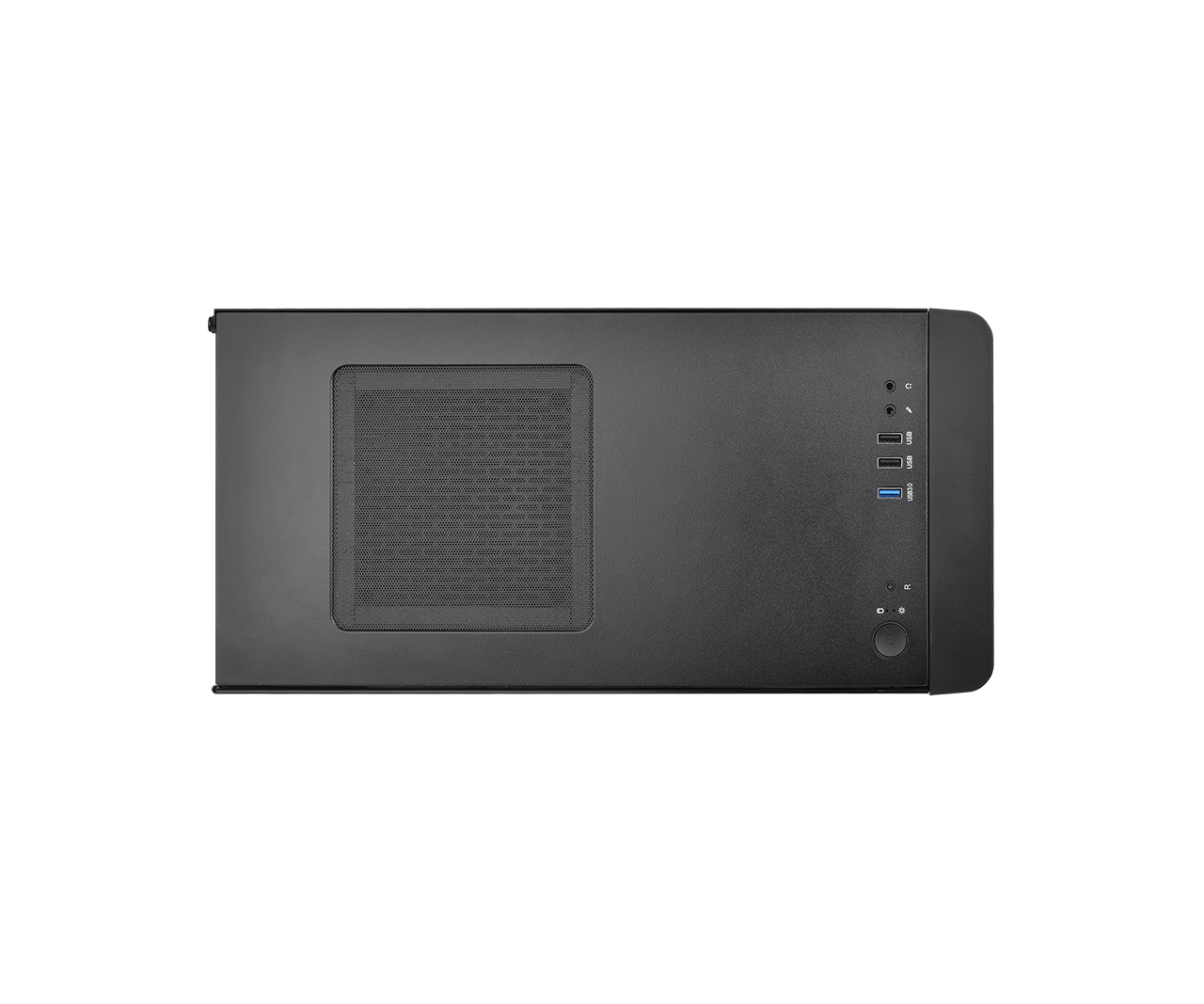

A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters provide excellent protection against both dirt and dust.
One 3.0 USB, two 2.0 USB, HD Audio to grant direct access when needed.
| 120mm | 240mm | 360mm | 140mm | 280mm | |
|---|---|---|---|---|---|
| Front | ● | ● | - | ● | ● |
| Top | - | - | - | - | - |
| Rear | ● | - | - | - | - |
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|
| Front | ● | ● | - | ● | ● |
| Top | - | - | - | - | - |
| Rear | ● | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 2 | 2 | - |
| Top | 1 | 1 | - |
| Rear | 1 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
| P/N | CA-1R1-00S1WN-00 |
|---|---|
| La serie | Serie V |
| Modelo | V150 TG |
| TIPO DE CAJA | Micro Case |
| DIMENSIONES (AL x AN x PR) | 398 x 208 x 440 mm (15.67 x 8.19 x 17.32 inch) |
| PESO NETO | 5.45 kg / 12 lbs |
| PANEL LATERAL | 4mm Tempered Glass x 2 (Left & Front) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| SISTEMA DE REFRIGERACIÓN | Rear (exhaust) : 1 x 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
| BAHÍAS DE EXPANSIÓN | 2 x 2.5" ; 2 x 3.5” |
| RANURAS DE EXPANSIÓN | 4 |
| PLACAS BASE | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| PUERTOS E/S | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| FUENTE DE ALIMENTACIÓN | Standard PS2 PSU (optional) |
| COMPATIBILIDAD VENTILADORES | Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 1 x 120mm, 1 x 140mm, Rear: 1 x 120mm |
| COMPATIBILIDAD RADIADORES | Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Rear: 1 x 120mm |
| LIMITACIONES | CPU cooler height limitation: 155mm VGA length limitation: 350mm(Without Front Fan) PSU length limitation: 220mm |
User Manual
- Nombre de archivo
- Descripción
- Tamaño
- Version
- Release Date
-
V150 TG Manual
- V150 TG Manual
- 7.7 MB
- 2020-05-05
